Cone penetration testing
Rig ID: CPT30
Model CPT 100 Box Crawler
Mounting Track mounted
- Capability
- • Mini block sampler
- • Down hole sheer vane testing
- • Tailings investigations
- • CPT
- • CPTu
- • SCPTu P-S wave
- • VST thin wall sampling
- • MOSTAP sampling
- • Ranger sampling
- • DMT (Medusa)
- • Seismic cone penetrometer testing
- • Seismic DMT
- • Shear vane testing
- • Electrical vane shear testing
- • Vibrating wire piezometer installation
- • Sediment sampling
- • Ball penetrometer testing
- • Dissipation testing including overnight and extended periods
- • Electric friction cone penetration testing
- • Piezo cone testing
- Specification
- Ground Pressure 0.35cm2 5Psi
- Stroke 1,250mm
- Push Force 200Kn
- Retract Force 320Kn
- Length 4,350mm
- Width 2,400mm
- Height with Canopy up 3,100mm
- Weight 18 tonnes
- Noise inside Cab 67db
- Airconditioned Cab Yes
- Remote Control Tramming Yes
- Levelling System Self-levelling 4 Hydraulic Jacks
Rig ID: MT01
Model Morooka MST1500VD Track Machine
Mounting Track mounted
- Capability
- • Mini block sampler
- • Down hole sheer vane testing
- • Tailings investigations
- • CPT
- • CPTu
- • SCPTu P-S wave
- • VST thin wall sampling
- • MOSTAP sampling
- • Ranger sampling
- • Medusa dilatometer testing
- • Field vane testing
- • Seismic cone penetrometer testing
- • Seismic DMT
- • Soil surveys
- • Shear vane testing
- • Electrical vane shear testing
- • Vibrating wire piezometer installation
- • Electric plate load testing
- • Sediment sampling
- • Ball penetrometer testing
- • T-bar penetrometer testing
- • Dissipation testing
- • Electric friction cone penetration testing
- • Piezo cone testing
- Specification
- Pushing power 20 tonnes
- Length 6,200mm
- Width 2,550mm
- Height 2,920mm
- Weight 18 tonnes
- Carrying capacity 7.1 tonnes
- Ground pressure 24.8 Kpa
- Auger Front mounted
Rig ID: CPT38
Model DRILL’N CPT 200
Mounting Adaptable track mounting
Sonic and CPT Combination
Combining the benefits of Sonic Drilling with CPT to provide continuous CPT data after encountering a point of refusal.
The Drill’n CPT unit mounts on any of our Sonic Drill fleet of track-mounted rigs instantly – converting them into a CPT rig on the spot. This CPT unit ensures the collection of CPT data to target depth no matter the material density within the strata.
This combination also provides a cost effective and highly efficient teaming of Sonic sampling and CPT services within a single mobilised package of assets, reducing cost and project timeframes.
- Capability
- • CPT
- • CPTu
- • SCPTu P-S wave
- • VST thin wall sampling
- • Vibrating wire piezometer installation
- Specification
- Pushing power 20 tonnes
- Stroke 800mm
- Weight 280kg
- Width 780mm
SUPPORT EQUIPMENT
Rig ID: WT01
Description Simex T600 Wheel Trencher attached to a skid steer. Trenches to a maximum depth of 650mm and width of 200mm.

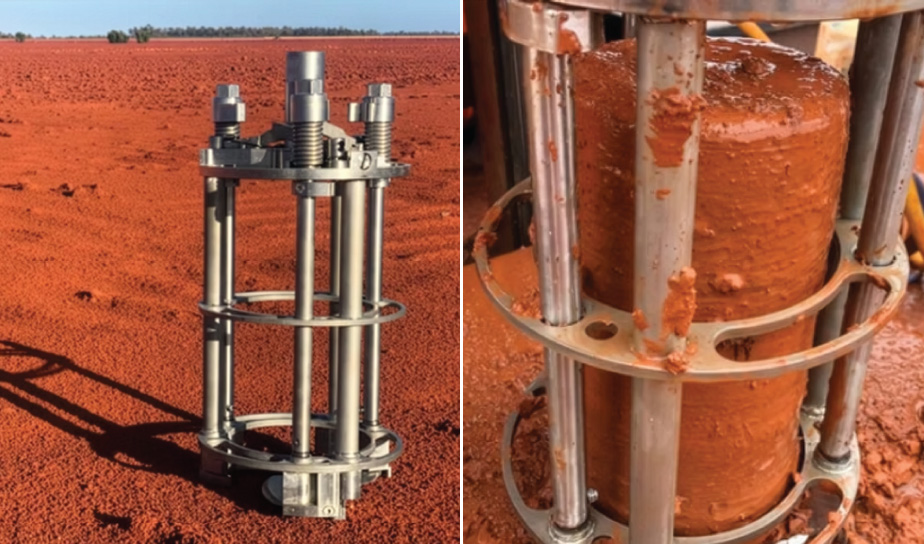

Rig ID: MS01
Description Mini Block Sampling System 150mm wide x 300mm long.
